Fundus Drawing: Colour Coding Chart

For: PG residents · Practising ophthalmologists

Key points in 60 seconds

  • Drawn with the indirect ophthalmoscope, inverted, on a chart of circles for the equator and ora serrata.
  • Red: attached retina, arteries, haemorrhages; breaks filled red and outlined in blue.
  • Blue: detached retina, veins, ora serrata and lattice (blue cross-hatching).
  • Green: vitreous opacities and haemorrhage; yellow: exudates and drusen.
  • Black: pigment and laser or cryo scars; brown: choroidal detachment and naevi or melanoma.

A fundus drawing records the retinal periphery, usually with an indirect ophthalmoscope, on a chart of concentric circles marking the equator and ora serrata. The drawing is made inverted, as seen through the condensing lens, and a standard colour code lets anyone read it at a glance.

Standard colour code

ColourWhat it shows
RedAttached retina, retinal arteries, retinal haemorrhages, neovascularisation. Retinal breaks are filled red and outlined in blue.
BlueDetached retina, retinal veins, outlines of breaks, the ora serrata, and lattice degeneration (blue cross-hatching outlined in blue)
GreenVitreous and media opacities, vitreous haemorrhage, intraocular foreign bodies
YellowExudates, drusen, retinal oedema
BlackRetinal pigment, pigment clumps, and pigmented laser or cryotherapy scars
BrownChoroidal detachment, uveal tissue, choroidal naevi and melanoma

Conventions vary slightly between units; follow your department's code. See also retinal detachment and Lincoff rules. For the anterior segment, see our corneal drawing colour chart.

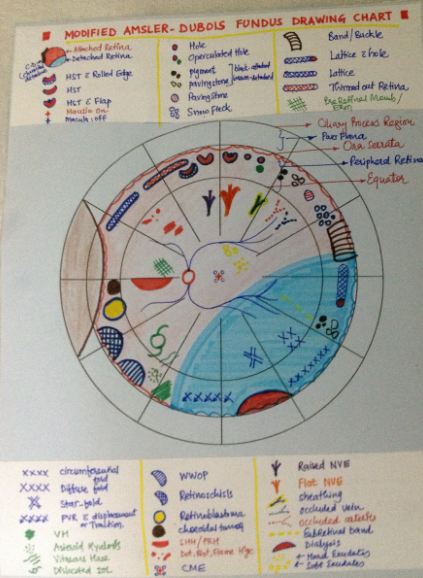

Detailed fundus drawing chart

Fundus Drawing

Companion chart: Corneal drawing: colour coding chart for slit-lamp drawings of the cornea.
